Running the examples locally
The Modelit Embedded Webserver Toolbox comes with a number of examples that work out of the box. Do the following to run these examples :
- Download the MEWT p-code zipfile;
- Extract the ZIP file to a new folder on your computer;
- Create a Matlab desktop icon, with "Start in" equal to this folder;
- Start Matlab;
- Run "demo_MEWT" from the command line
>> demo_MEWT

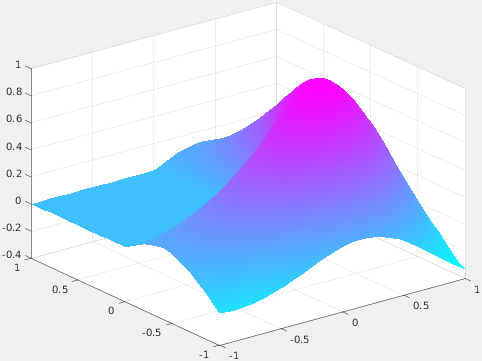

- Verify the examples using the instructions as displayed on the command line. Each of the examples can be verified by using a webbrowser pointing to the corresponding example. E.g. localhost:8082/image for the example that produces a Matlab image. Note that the corresponding callbacks can be found in the examples directory of the toolbox.
Verify live examples
http
Instead of running demo_MEWT yourself, you can also verify an instance of demo_MEWT that is running on our server.
For this purpose we have compiled demo_MEWT.m and deployed it in a Docker container. We have also forwarded port 8082 to our server. This establishes a http connection to MEWT.
https
For each example, the second (https) url uses the secure connection of our Apache HTTP server and redirects the requests to the Docker container with the compiled Matlab code. This method is documented in a separate blog article. We recommend this method as it piggybacks on the on the site certificate and obviates the need to maintain a separate certificate for each single webservice.
Links
Use the links below to make a request to the server, a new window will open with the result generated by the Embedded HTTP server.
The following examples are available (The Matlab source code for each example is available by clicking on the link in the last column. The source code for demo_MEWT is shown at the end of this article):
Source code of demo_MEWT.m
function server = demo_MEWT % demo_MEWT - Server with examples of callbacks. The server listens to % port in the range 8082 and creates a number of callbacks % % CALL: % httpsServerExample % % INPUT: % no input required % % OUTPUT: % server: <modelit.web.server.Server> % a server listening to the port 8082 % localhost:port/ ==> InfoCallback % localhost:port/html ==> HTMLCallback % localhost:port/xml ==> XMLCallback % localhost:port/json ==> JSONCallback % localhost:port/pdf ==> PDFCallback % localhost:port/image ==> ImageCallback % localhost:port/figure ==> FigureCallback % localhost:port/authentication ==> AuthenticationCallback (log in with username: % user, password: 1234) % localhost:port/html2 ==> HTMLCallback, credentials required % % NOTE: % this example % Use generateSelfSignedCertificate to make a keystore % Server listens to http request on port 8082 disp('Run demo for Modelit Embedded Webserver (MEWT)') port = 8082; server = modelit.web.server.Server(port); urlroot=sprintf('localhost:%d',port); dprintf('Launching example "InfoCallback" ...') server.addContext('/',@InfoCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/',urlroot)) dprintf('Launching example "HTMLCallback" ...') server.addContext('/html',@HTMLCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/html',urlroot)) dprintf('Launching example "XMLCallback" ...') server.addContext('/xml',@XMLCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/xml',urlroot)) dprintf('Launching example "JSONCallback" ...') server.addContext('/json',@JSONCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/json',urlroot)) dprintf('Launching example "PDFCallback" ...') server.addContext('/pdf',@PDFCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/pdf',urlroot)) dprintf('Launching example "ImageCallback" ...') server.addContext('/image',@ImageCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/image',urlroot)) dprintf('Launching example "FigureCallback" ...') server.addContext('/figure',@FigureCallback); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/figure',urlroot)) dprintf('Launching example "AuthenticationCallback" ...') server.addContext('/authentication',@AuthenticationCallback,'user','1234'); dprintf('To verify this example, open the url "%s" in your web browser. Hint: username="user", password="1234".',... sprintf('%s/authentication',urlroot)) dprintf('Launching example "HTMLCallback with credentials" ...') server.addContext('/html2',@HTMLCallback,'user','1234'); dprintf('To verify this example, open the url "%s" in your web browser',... sprintf('%s/html2',urlroot)) dprintf('Launching example "remoteCallback" ...') server.addContext('/sort',remoteCallback('sort')); dprintf('To verify this example, start a SECOND Matlab session. Then issue commands:'); dprintf(' fp_sort = remoteFunction(''http://%s/sort'',@sort)',urlroot); disp(' [B,I] = fp_sort(10:-1:1)'); % start listening server.start; HWIN=figure('Name',sprintf('Server is active on port %d',port),'DeleteFcn',@(o,e)stopserver(server)); h=uicontrol(HWIN,'style','pushbutton','str','Stop server','units','norm','position',[.1,.4,.8,.2],'callback',@(o,e)delete(HWIN)); function stopserver(server) disp('Stopping server...') server.stop; disp('The server has been stopped.')
